For technical divers transitioning beyond recreational depths, the air we breathe changes dramatically. While standard compressed air or simple Nitrox blends suffice for shallow reefs, descending past 100 feet (30 meters) introduces severe physiological challenges: nitrogen narcosis, oxygen toxicity, and elevated gas density that hampers breathing efficiency.
To venture safely into deep wrecks, caves, and abyssal drop-offs, divers rely on Trimix—a specialized breathing gas composed of oxygen, nitrogen, and helium. However, calculating the exact proportions of these three gases for target depths can feel daunting for newcomers. This is where the concept of the Trimix Triangle becomes an essential visual and mathematical tool.
Understanding how to read, plot, and apply Trimixtriangles enables technical divers and gas blenders to safely select and formulate breathing mixtures tailored to specific maximum depths and equivalent narcotic depths.
A ternary Trimix plot showing safe gas boundaries for target depths. Source: ResearchGate
1. What is Trimix and Why Do We Need It?
Before diving into triangular plots and gas ratios, it is vital to understand the roles of the three gases that make up a Trimix blend:
- Oxygen (O2): Vital for life, but toxic at high partial pressures (ppO2). Technical divers strictly cap oxygen exposure to avoid Central Nervous System (CNS) toxicity, typically setting a maximum operational ppO2 limit of 1.4 bar for the working phase of a dive and 1.6 bar for stationary decompression stops.
- Nitrogen (N2): The primary constituent of atmospheric air. At increased ambient pressure, nitrogen acts as an anesthetic, causing nitrogen narcosis (“rapture of the deep”). Replacing a portion of nitrogen with another gas mitigates narcosis.
- Helium (He): A light, chemically inert gas with almost no narcotic effect at diving depths. Adding helium reduces both the nitrogen concentration (lowering narcosis) and oxygen concentration (preventing oxygen toxicity at depth). Additionally, helium lowers total gas density, making it easier to breathe under high ambient pressure.
Trimix blends are expressed as two numbers representing the percentages of Oxygen and Helium, with Nitrogen making up the remaining balance to reach 100%. For instance, Tx 18/45 contains 18% Oxygen, 45% Helium, and 37% Nitrogen (100−18−45=37).
2. Deciphering the Geometry: How Ternary Plots Work
A Trimix Triangle is a form of ternary plot—a triangular graph used in physical chemistry, geology, and gas physics to depict the proportions of a three-component system that sums to 100%.
Reading the Axes
Each of the three vertices of the triangle represents a 100% pure concentration of one gas:
- Top Apex: 100% Helium (He)
- Bottom-Left Vertex: 100% Oxygen (O2)
- Bottom-Right Vertex: 100% Nitrogen (N2)
The sides connecting these vertices represent two-gas mixtures:
- The bottom baseline represents Nitrox mixtures (Oxygen + Nitrogen, 0% Helium).
- The left edge represents Heliox mixtures (Oxygen + Helium, 0% Nitrogen).
- The interior area represents true Trimix mixtures containing all three gases.
When you move perpendicular to an edge toward a vertex, the concentration of that vertex’s gas increases. Any specific point inside the triangle corresponds to a unique mixture ratio of O2, N2, and He.
3. Physiological Boundaries on the Triangle
A Trimix Triangle is not just a coordinate map; it maps physiological safe zones. By plotting maximum depth limits, partial pressures, and narcotic equivalencies onto the triangle, divers can visually isolate the “breathable zone” for a specific dive plan.
100% Helium
/
/
/ Tx <-- Reduced Narcosis & Density Zone
/ Area
/
100% Oxygen /_______________ 100% Nitrogen
(Nitrox Baseline)
The Oxygen Toxicity Line (MOD Limit)
At a given target depth (e.g., 200 feet / 60 meters), a maximum allowable fraction of oxygen (FO2) exists to avoid exceeding a ppO2 of 1.4 bar. This limit creates a straight line across the triangle. Any gas combination falling to the left or above that boundary stays within safe oxygen limits for that depth; mixtures falling to the right risk oxygen toxicity.
The Hypoxia Line
Breathing mixtures with less than 16% oxygen (FO2<0.16) cannot support human life at sea level, and mixtures below 18% or 21% are classified as normoxic or hypoxic Trimix. Hypoxic blends require a dedicated “travel gas” or “bottom gas” strategy during descent. On the triangle, a vertical or angled line marks the minimum FO2 boundary required for surface breathing or shallow switch depths.
The Equivalent Narcotic Depth (END) Line
The Equivalent Narcotic Depth represents the depth at which breathing air would produce the same narcotic intensity as the current Trimix blend at target depth. Most technical agencies recommend keeping END between 80 to 100 feet (24 to 30 meters).
Because helium is considered non-narcotic at these depths, increasing the helium percentage pushes the blend higher up the triangle, effectively reducing the END line.
4. Step-by-Step: Selecting a Gas Blend Using Ratios
To put theory into practice, let’s walk through selecting an ideal Trimix blend for a dive to 200 feet (61 meters / 7.1 ATA total pressure) with a maximum ppO2 of 1.4 bar and a maximum END of 100 feet (30 meters / 4.0 ATA).
Step 1: Calculate Maximum Oxygen Fraction (FO2)
Max FO2=Target Absolute Pressure (ATA)Max ppO2=7.11.4≈0.197 (19.7%)
We round down to 18% Oxygen to maintain a comfortable safety margin.
Step 2: Calculate Required Helium Fraction (FHe) for Target END
We want our Equivalent Narcotic Depth not to exceed 100 feet (4.0 ATA).
Max Narcotic Partial Pressure (ppN2)=4.0 ATA×0.79=3.16 bar
Max Nitrogen Fraction (FN2)=7.1 ATA3.16 bar≈0.445 (44.5%)
Now, calculate Helium by subtracting Oxygen and Nitrogen from 100%:
FHe=1.00−FO2−FN2=1.00−0.18−0.44=0.38 (38%)
This gives us a standard mix of Tx 18/45 or Tx 18/40, both of which fall neatly into the acceptable zone on a Trimix ternary chart.

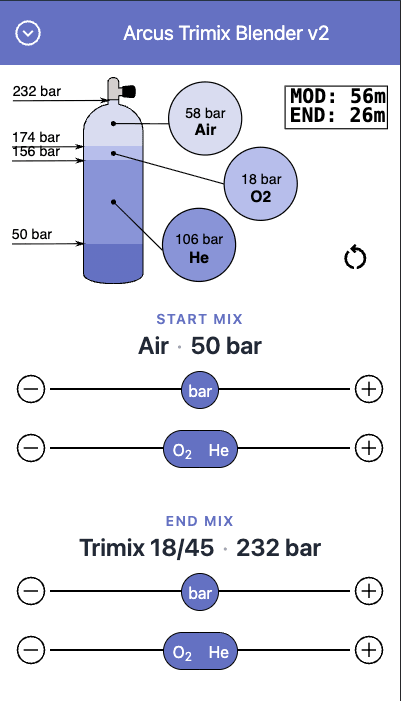

Digital partial pressure blending software for Trimix 18/45. Source: Reddit
5. Standard Trimix Blends vs. Custom Mixes
To streamline logistics and team diving safety, technical diving organizations (such as GUE, IANTD, and TDI) often utilize standardized Trimix mixtures. Understanding where these standard mixes sit on the Trimix Triangle simplifies planning:
| Standard Blend | Oxygen (O2) | Helium (He) | Nitrogen (N2) | Typical Target Depth |
|---|---|---|---|---|
| Tx 21/35 | 21% | 35% | 44% | 100–160 ft (30–45 m) |
| Tx 18/45 | 18% | 45% | 37% | 160–200 ft (45–60 m) |
| Tx 15/55 | 15% | 55% | 30% | 200–240 ft (60–73 m) |
| Tx 10/70 | 10% | 70% | 20% | Hypoxic / Abyssal (>240 ft) |
Using standardized blends ensures that all team members share identical decompression schedules, gas density limits, and turn-pressure profiles.
6. Practical Applications for Gas Blenders
For certified gas blenders, the Trimix Triangle provides an invaluable conceptual model when performing partial pressure blending or continuous-flow mixing.
- Partial Pressure Blending: Blenders add pure helium first, followed by pure oxygen, and top off with air or Nitrox. Visualizing the mixture shift on a ternary plot helps blenders understand how residual gases in a cylinder change the final mixture trajectory.
- Top-Off Calculations: When topping off an existing cylinder containing residual Trimix with air or Nitrox, the blend moves along a straight line toward the topping gas’s coordinate on the bottom baseline.
- Quality Control & Analysis: Analyzers measure O2 and He directly. Confirming these two percentages automatically defines the remaining N2, allowing blenders to cross-reference their final cylinder analysis with the target point on their plot.
Conclusion: Balancing Safety, Physics, and Geometry
Mastering complex Trimix ratios does not require an advanced degree in mathematics. By utilizing visual frameworks like the Trimix Triangle and applying foundational partial pressure formulas, technical divers can systematically demystify gas planning.
Whether you are preparing for your first normoxic Trimix course or seeking to refine your partial-pressure gas blending techniques, understanding the balance between Oxygen toxicity, Nitrogen narcosis, and Helium fractions is the cornerstone of safe deep exploration.
